Name: HONDO AWD - SM
Brand: Vamoose USA
SKU: VM01HDA10217-DCA
Price: 4999.0 USD
Availability: InStock

HONDO AWD - sm

The Vamoose HONDO is a cut above the rest - and now comes in a smaller frame. Featuring dual BAFANG 750W motors, and top-tier components including Tektro Dorado quad piston brakes, SRAM X5 9-speed derailleur, Rockshox rear suspension and air front suspension, as well as 1040 amp hour 52V 20Ah Samsung cell standard battery with dual "pony" battery option - this cycle is a high-performing beast.

$4,999.00

Impuesto incluido.

Product Colour

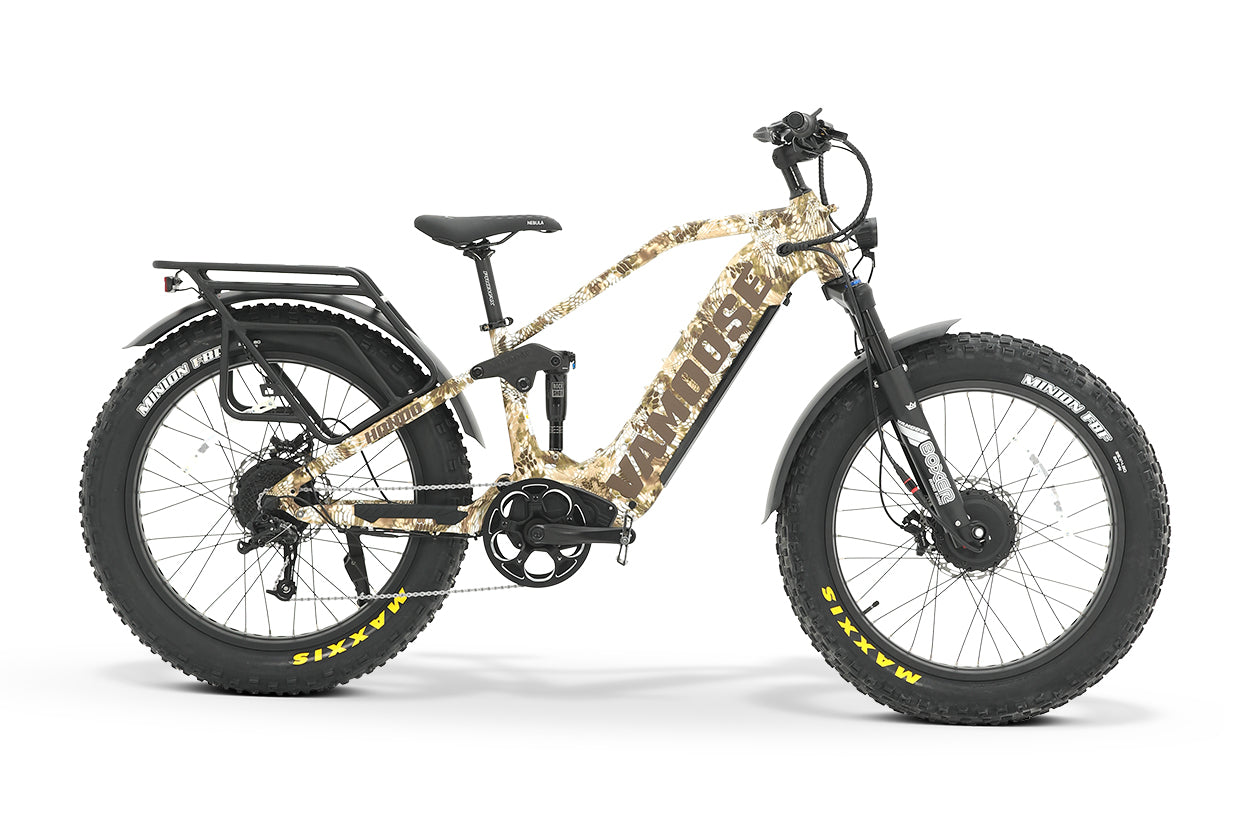

Desert Camo

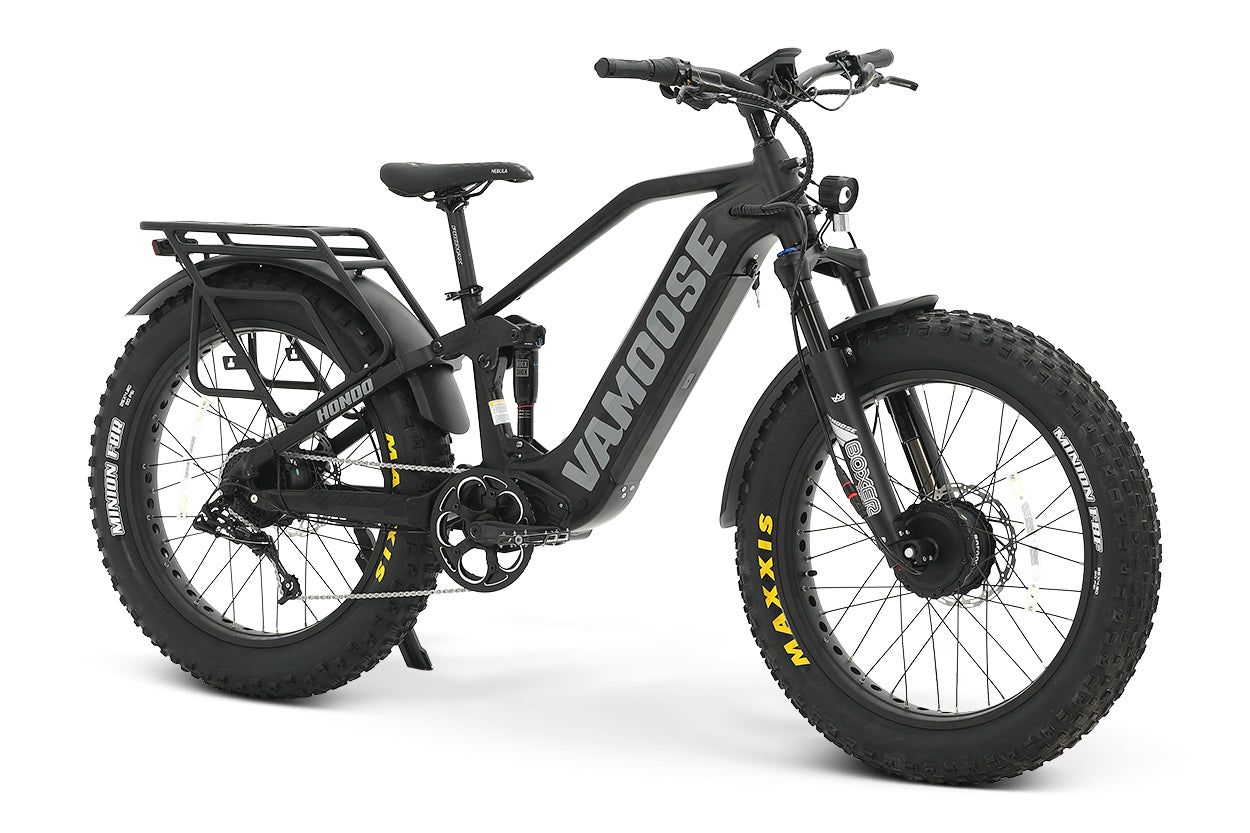

Matte Black and Gunmetal Grey

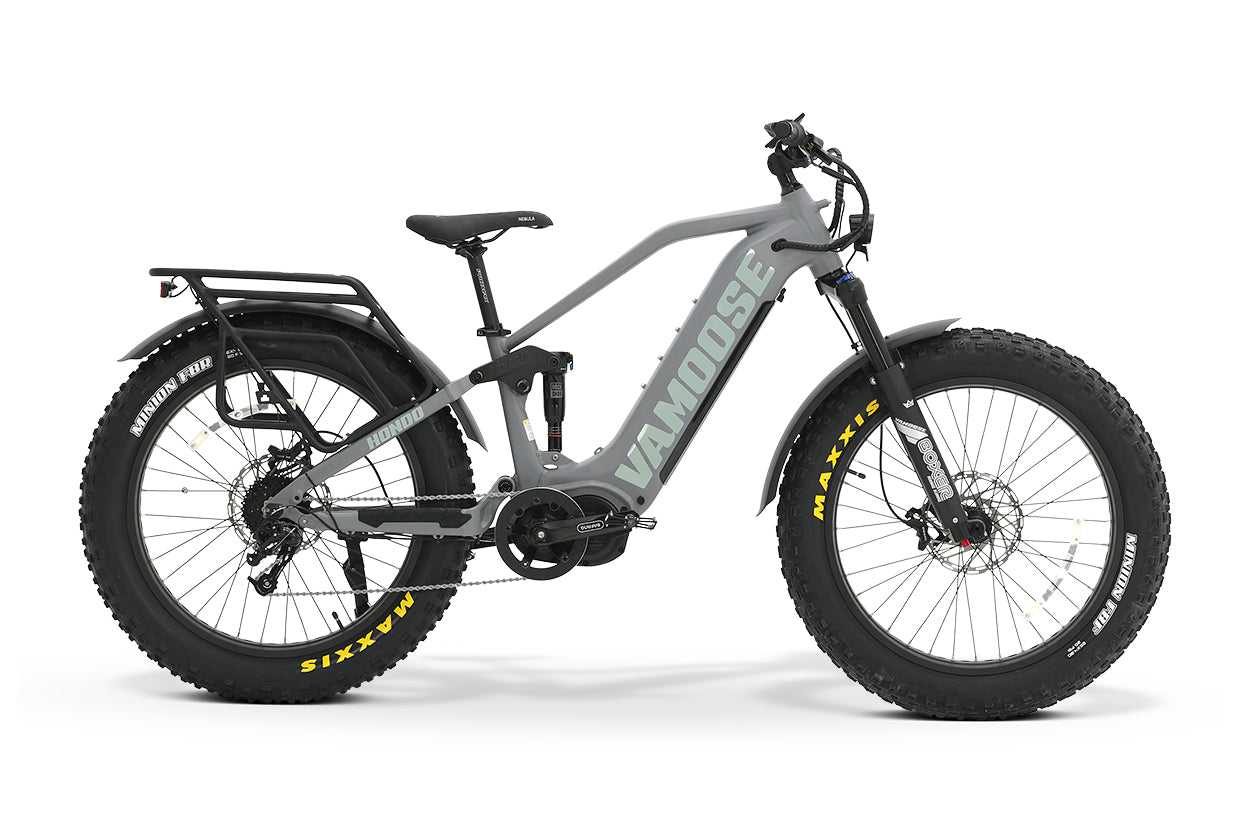

Nardo Grey and Sharkskin Grey

Brilliant Blue and Electric Yellow

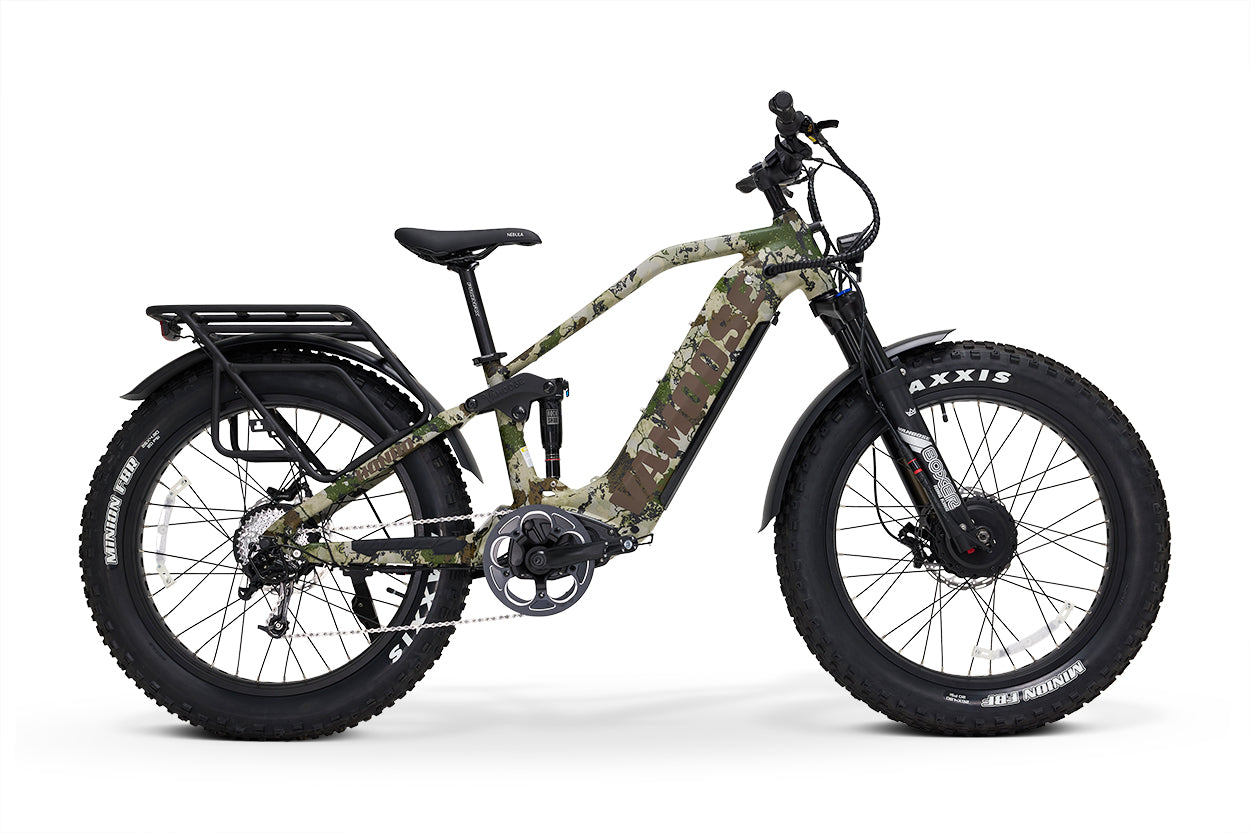

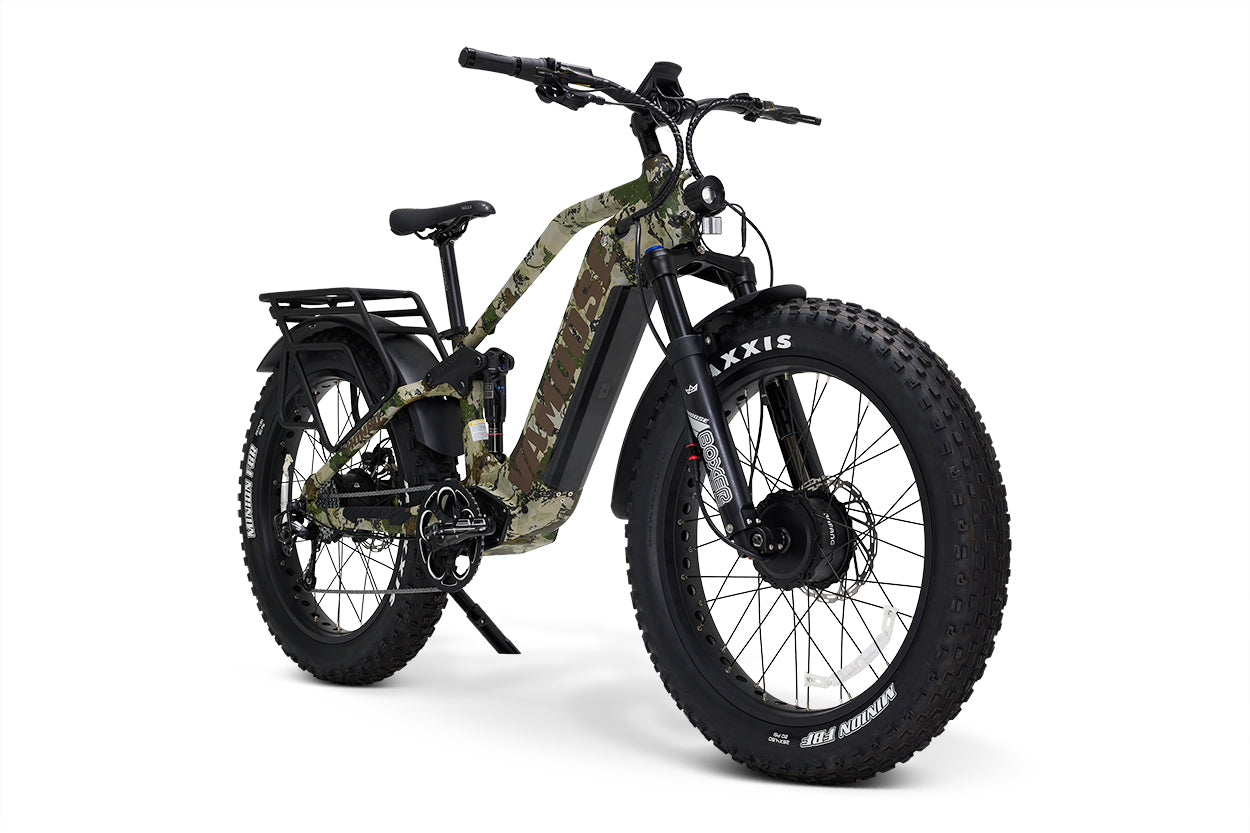

Predator Camo

Existencias bajas: quedan 1 artículo
Inventario en el camino

The Vamoose HONDO AWD - SM is a cut above the rest - in a smaller frame (17" seat tube)! With top-tier components including Tektro Dorado quad piston brakes, SRAM X5 9-speed derailleur, Rockshox rear suspension, and air front suspension, as well as distance leading 52V 20Ah battery with the dual-battery option, this cycle is a high-performing beast.

FULL SUSPENSION & FULL POWER

The Vamoose HONDO comes in two models: the all-wheel drive dual 52V 750W version or a mid-drive BAFANG M620 version. Both provide incredible torque and power to climb steeper hills, tear through deep snow, tow a heavy load, or carve up logging trails with ease. This is the HONDO AWD version, click here for the HONDO MID.

This cycle comes standard with the following adders:

• Dual 52V 750W motors (ability to downsample to 500W)

• 52V 20 Ah Samsung Battery with additional battery optional

• A 6061 aircraft aluminum frame with alloy front forks

• Torque sensor

• Hydraulic Tektro Dorado quad piston brakes

• Front and rear LED lights

• MAXXIS™ Minion tires

SPECIFICATIONS

SPECIFICATIONS

Motor Format:	Dual
Front Motor:	BAFANG G06 52V 750W
Mid Motor:	N/A
Rear Motor:	BAFANG G06 52V 750W
Derailleur and shifters:	SRAM X5 9 SPEED
Throttle:	Twist Throttle w/o shut off
Display:	APT 860C with USB
Battery:	21700 50 E CELLS 52V 20 Ah Samsung
Charger:	4A SMART
Front forks :	BOXER Inverted Air with 150 mm travel
Rear Suspension:	Rockshox DELUXE SELECT 190845
Frame:	LRG 6061 Aluminum with Trailer Eylets and Piggy-back mount on downtube
Brakes:	"Tektro HD-E730 Dorado, 4 PISTON Hydraulic 203 mm ROTOR"
Wheels:	26" x 4.8" MAXXIS MINION FBR FBF
Pedals:	GINEYEA Aluminum K303
Saddle:	Nebula Gel
Front and Rear Racks:	Rear, with front mount option
Fenders:	Plastic
Front and rear lights:	Wired

ADDITIONAL ATTRIBUTES

Torque (per motor):	100 Nm MAX Torque
Watt Hours:	1040
Miles per charge:	52 mi
Kms per charge:	84 kms
Battery charge time:	4-6 hrs.
USB Plugin:	YES

WEIGHTS AND DIMENSIONS

Box dimensions (cm):	168 x 32.5 x 86.5
Box dimensions (inch):	66 X 13 X 34
Weights (metric):	37kg NW / 46 kg GW
Weights (imperial):	81.5 lbs NW / 101 lbs GW
Max Speed (metric):	32 km/h max speed
Max Speed (imperial):	20 m/h max speed
Max Load:	330 lbs.
